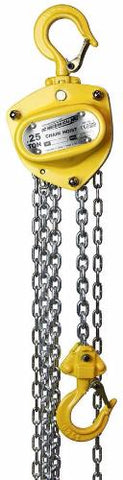

OZ Mechanical Chain Hoist No Overload Protection
Product Number: OMCB025NG
- $12701 $127.01
FEATURES and BENEFITS
- Lightweight robust construction
- High strength alloy load chain
- Fully enclosed gear train
- Minimum effort to lift W.L.L.
- Trust race in lower hook
- Chrome plated covers
- Minimum headroom
- Galvanized hand and load chain
PRODUCT CODE | OMCB025NG | |
W.L.L (lbs) | 500 (lbs) | |
Lift (ft) | 10 (ft) | |
Headromm / hook to hook H min. (in) | 8.98 (in) | |
Effort to lift full load (lbs) | 26.45 (lbs) | |
Falls of chain | 1 | |
Loadchain / dia. x pitch (mm) | 4×12 (mm) | |
A | 3.9 (in) | |
B | 4.29 (in) | |
Product dimensions (in) | C | 1.89 (in) |
D | 4.25 (in) | |
E | .70 (in) | |
E1 | .60 (in) | |
Net weight (lbs) | 9 (lbs) |
The OZ Mechanical Chain Hoist is designed for commercial building sites, as well as various construction workplaces, such as warehousing, buildings, storage areas, and factories in general. The OZ Mechanical Chain Hoist can be easily mounted due to its lightweight construction. Don’t let the low weight fool you, however. With a net weight of only nine pounds and a weight load limit of five hundred pounds, this chain hoist delivers big power in a compact frame. The chain hoist is made of only the highest quality materials and is tested thoroughly before it leaves the manufacturer. The chain hoist is easy to use and has a straightforward and well-marked “up” and “down” construction. Unlike products from most chain hoist suppliers, the OZ Mechanical Chain Hoist allows the operator to pull the load chain at any angle. With many other chain hoists, you have to be underneath or very close to the load chain to operate the hoist. However, with the chain hoist made by OZ Lifting Products, the operator could be standing at a distance or even above the chain hoist and still be able to pull the load chain and operate the hoist. Each chain hoist comes standard with a hook with a roller bearing in the bottom block, so users can turn the load without turning the load chain. Due to this, the load chain will never get tangled when the load turns or rotates. Every chain hoist comes standard with a cast forge steel hook and a heavy-duty safety latch. OZ Lifting Products is committed to the safety and security of your employees, and it shows in the quality and numerous safety features built into the chain hoist. Zinc plating inside the chain hoist ensures corrosion protection, while interior chain guides are protected. A chain cleaner and zinc-plated, no-oil chains prevent debris from accumulating. Each hoist comes with a test certificate and an owner’s manual. Made by OZ Lifting Products, the chain hoist is backed by the OZ guarantee, so you can rest assured that it meets all quality control standards and is of the highest, most-durable quality. All OZ Lifting Products, including the OZ Mechanical Chain Hoist, are top-of-the-line when it comes to safety, durability, performance, and customer satisfaction. Every chain hoist is triple tested at the factory to 50% over the rated capacity, so our customers can be safe in the knowledge that these hoists will work the first time, and every time after that. In addition, OZ Lifting Products has exceptional customer service and technical support, so should any issues arise, they’ll be treated in a timely and helpful fashion.
