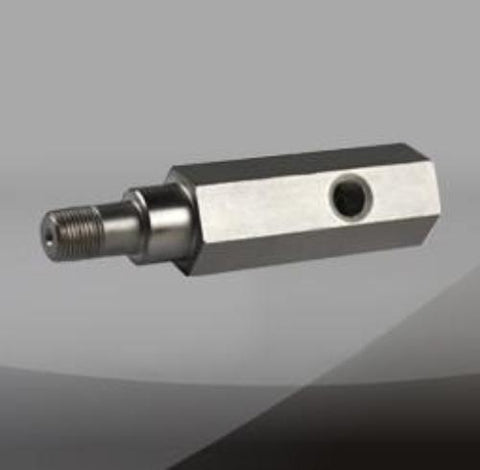

EGA-Series - GAUGE ADAPTOR
Product Number: EGA-002
- $3493 $34.93
The Eagle Pro EGA Series adapts the Eagle Pro EG Series gauges to a hydraulic system.
| MODEL | MALE COUPLER THREAD | FEMALE COUPLER THREAD | GAUGE PORT THREAD | DIMENSIONS | ||
|---|---|---|---|---|---|---|
| A | B | F | ||||
| IN/D | IN/E | IN/C | IN | IN | IN | |
| EGA-002 | 3/8 - NPT | 3/8 - NPT | 1/2 - NPT | 6.10 | 1.38 | 1.26 |
| EGA-003 | 3/8 - NPT | 3/8 - NPT | 1/4 - NPT | 5.24 | 1.89 | 1.26 |
| EGA-005 | 3/8 - NPT | 3/8 - NPT | 1/4 - NPT | 5.28 | 1.38 | 1.26 |
| EGA-011 | 3/8 - NPT | 1/4 - NPT | 1/4 - NPT | 5.24 | 1.89 | 1.26 |
